Description

Inspired by the fast-paced kitchens of Hong Kong, ‘Fo San’ is Cantonese for volcano, representing the raw heat and power generated by the unique burner set-up. The Luus 11th generation refined superwok WV series boasts fan forced 145mj Air-Blast burners, single piece hob and deck, and are available in one or two hole configurations with optional side burners.

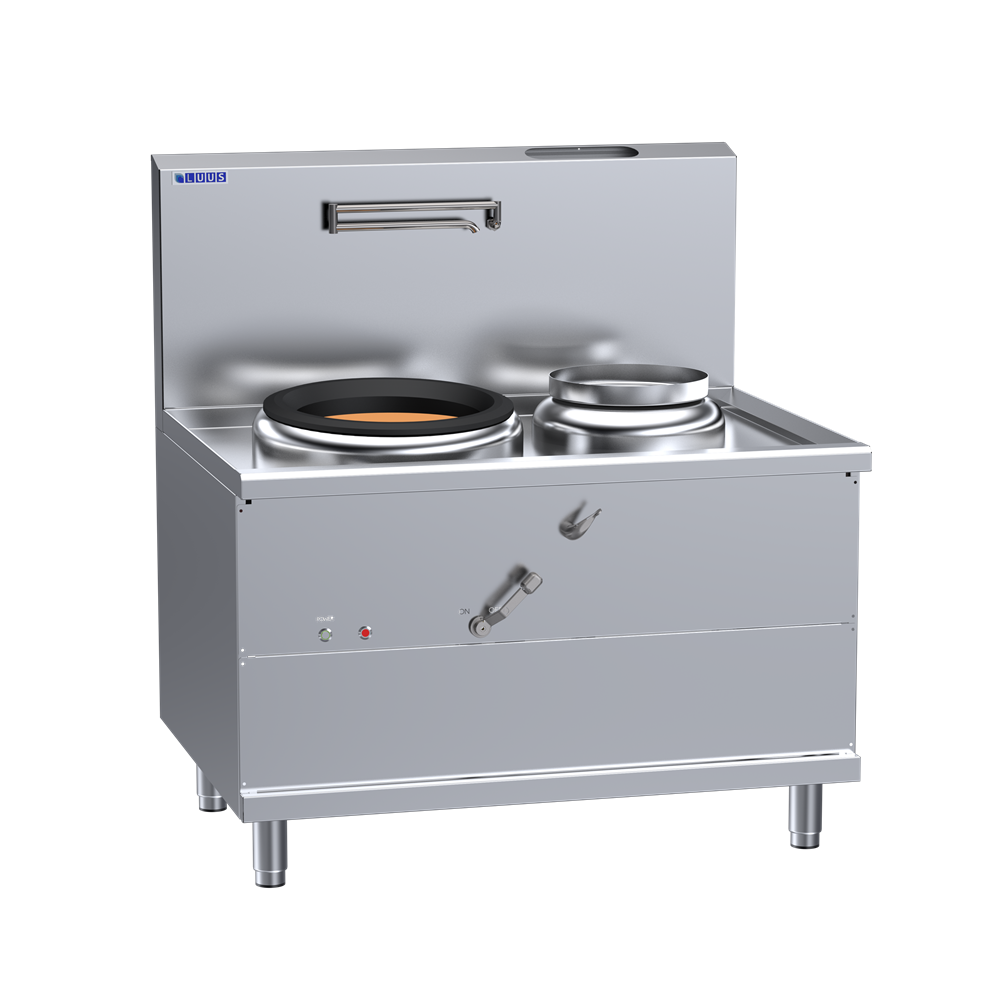

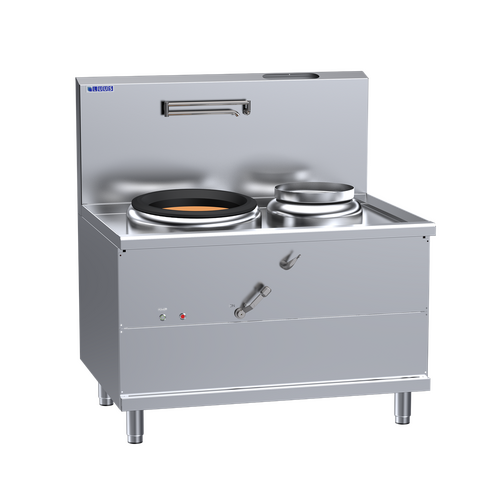

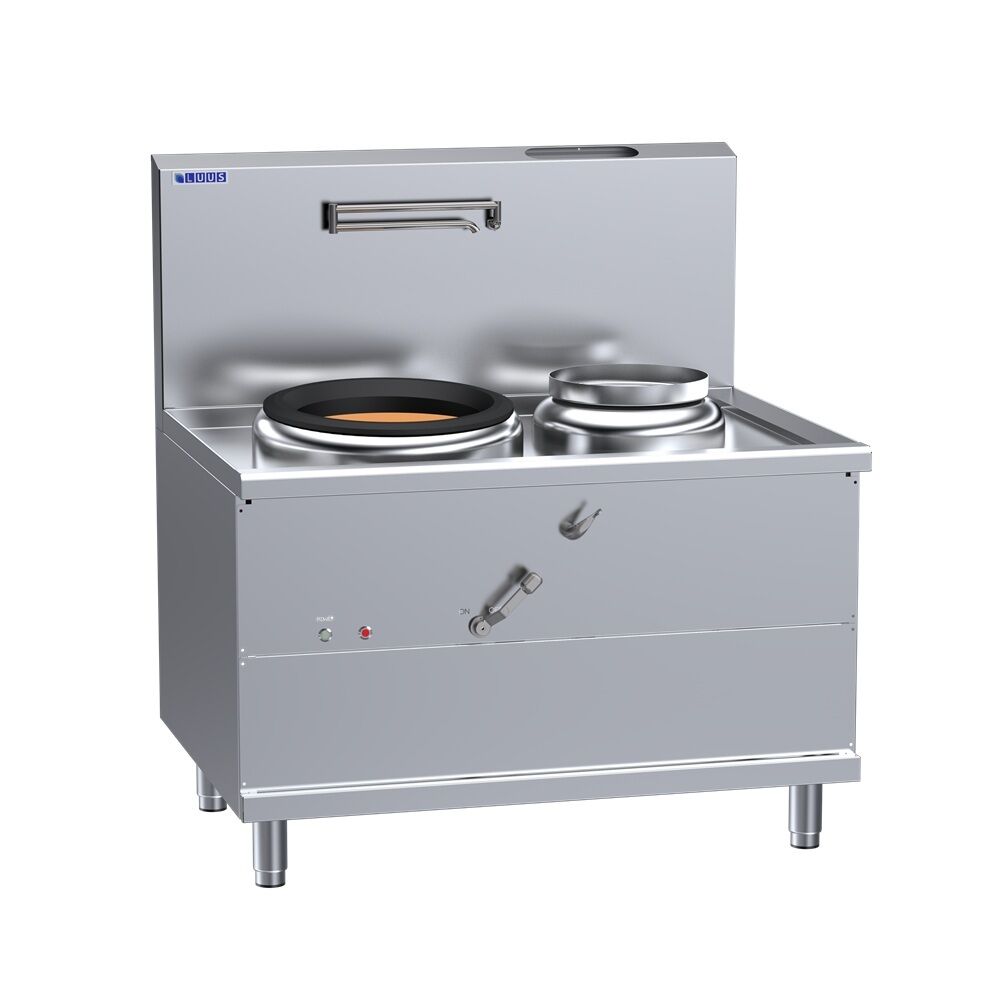

Fo San Wok

  • 145 mj Air-Blast Burner with 3 mj pilot & FFD standard
  • Electronic auto-ignition switch and burner reset function
  • Fan-forced stainless steel burner easy-to-clean design
  • External pilot position most effective at avoiding blockages
  • Fire-brick lined combustion chamber and ceramic base
  • Rear flue system provides effective & efficient combustion
  • Quarter turn water control lever
  • Folding rear laundry arm with front panel controls
  • Front gutter design for easier cleaning
  • Internal front heat shield panel
  • Supplied with waste strainer
  • Zinc-aluminium Alloy burner handles
  • Ergonomically designed burner handle can be repositioned at 45˚ orientations to match personal preference
  • Gas Rating: Nat 145mj / LPG 145mj
  • Warranty: 24 Months Parts and Labour
  • Australian Made
  • Dimensions (mm): 1200w x 900d x 1300h

Overall Construction

  • Heavy duty construction
  • Robust, full skirt, 355mm cast-iron ring
  • 1.5mm 304 stainless steel top deck
  • Splashback 1.2 mm 304 stainless steell
  • Front cover and hob 1.2mm 304 stainless steel
  • Side panels 0.9mm 304 stainless steel
  • Stainless steel removable legs
  • 55mm height adjustment range
  • 1.5mm 304 stainless steel base panel
  • One-piece hob and deck

Connections

  • 3/4" BSP Male
  • WV-1A1P: Gas 300mm from left, 100mm from rear, 215mm to floor, Water 670mm from right 60mm to rear, 205mm to floor, Electrical input located 175mm from left, 205mm to floor
  • Gas regulator built-in to gas train
  • Water inlet 1/2” tube with check valve
  • Drain 2” BSP male
  • Drain 120mm from left 80mm from rear, 495mm to floor
  • Electrical input rated at 220-240V, 10A, 50Hz & 150W
  • Length of cable from rear is 600mm

Cleaning & Servicing

  • Front gutter design and waste strainer for easier cleaning
  • Top surface and skirting is easy to clean from above
  • Burner removable and accessible from above
  • Burner injector, electrode and flame probe accessible
  • Control box accessible via lower front cover
  • Drain and tap accessible by removing upper front cover
  • Gas train, air-line, fan and burner accessible by removing front cover
