What you need to know:

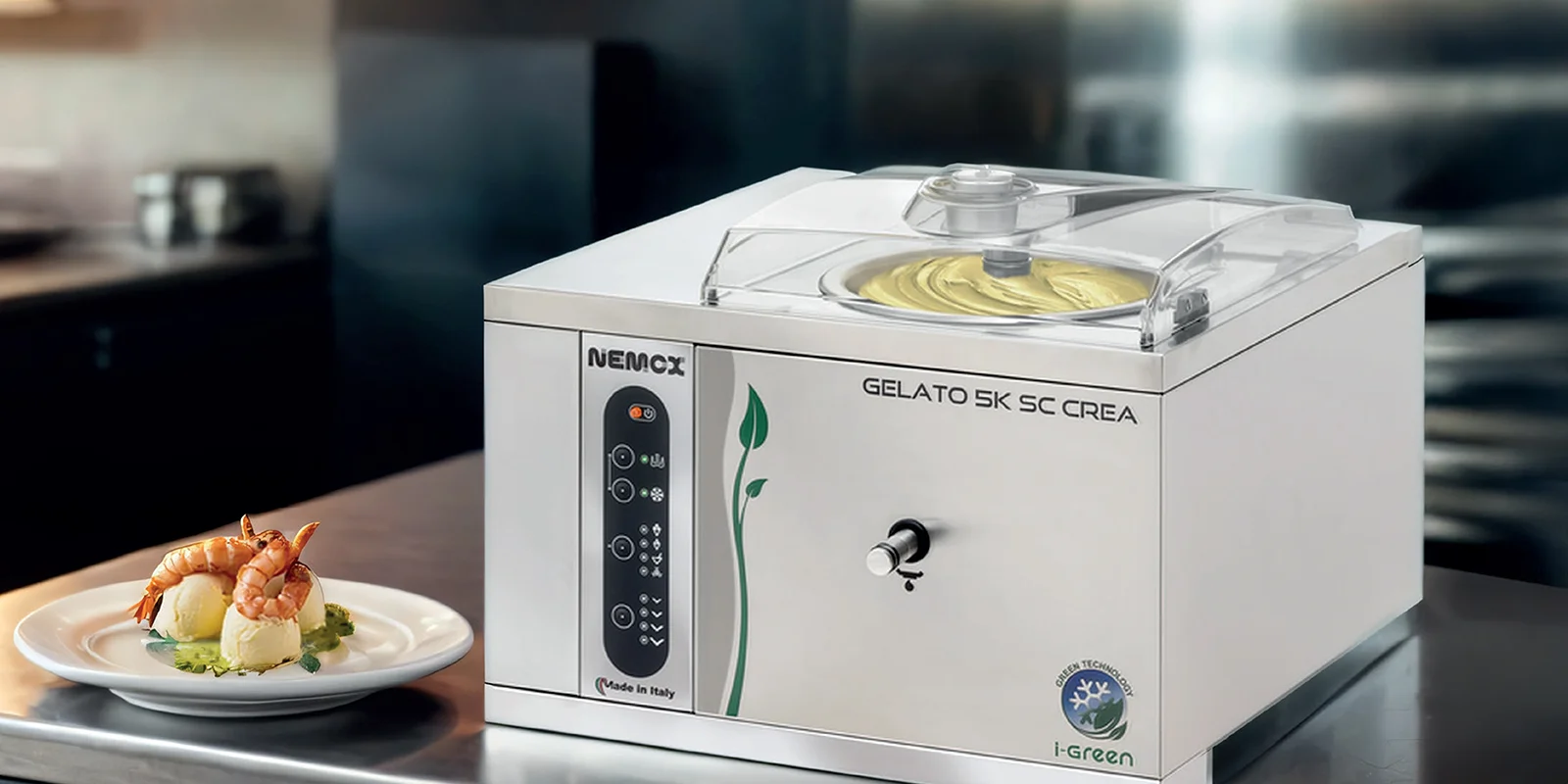

How Do Commercial Ice Cream Machines Work?

When you’re weighing up ice cream machines for a restaurant or commercial kitchen, understanding the process behind the product matters. Unlike a standard freezer that simply freezes everything solid, a commercial ice cream machine has a much trickier job: freezing the liquid while keeping it in constant motion. That movement is what creates those microscopic ice crystals for that smooth, creamy texture your customers love, over icy shards.

Getting familiar with the different functions of commercial ice cream machines makes it easier to compare models and choose the right one for your business. This guide will give you all the information you need.

How Do Commercial Ice Cream Machines Work?
The Core Process: Freezing and Churning

The Core Process: Freezing and Churning

To make delicious ice cream, there’s a soft serve machine mechanism working hard to do two things:

  1. A refrigeration system is cooling the walls of the freezing cylinder to below the freezing point. As the liquid mix enters the cylinder, it begins to freeze on contact with the cold surfaces, rapidly removing heat so the ice cream can start to form.

  2. At the same time, a rotating internal blade called a dasher is continuously scraping the frozen mix off the cylinder walls as it forms. This keeps the product moving, spreading the cold evenly so ice can’t build up. The constant movement is what allows a soft serve machine to freeze the product without it turning solid.

Key Components Under the Hood

Understanding the parts of a commercial ice cream machine makes it easier to follow how they freeze, churn and dispense product consistently, and what parts your machine should highlight when shopping around.

The hopper

Before the machine starts the freezing process, the liquid ice cream or soft serve mix needs to be held at a stable, food-safe temperature. This is what the hopper does, keeping the mix refrigerated and ready to flow into the freezing system as the product is dispensed. A consistent hopper temperature helps create an even texture while reducing the risk of your ice cream splitting.

The Freezing Cylinder

The freezing cylinder is where the liquid mix is turned into ice cream. Its walls are actively cooled by the refrigeration system, allowing heat to be removed quickly as the mix enters. The cylinder system helps continuously freeze the mix while it stays in motion, which is essential for a smooth, consistent result.

The Dasher (Beater)

Inside the freezing cylinder is the dasher, or beater, which stops ice from forming unevenly. It provides the movement we talked about, scraping the frozen mix off the cylinder walls as it forms and folding it back into the centre. This action keeps the temperature even throughout the product, playing a major role in the final, creamy texture.

The Compressor

Maintaining the freezing temperature and continuously removing the heat is going to be critical for keeping your ice cream consistent from the start of service to the end. The compressor performs this role by circulating refrigerant through the machine and drawing heat away from the freezing cylinder. Having stable compressor performance is going to get you through busy service periods.

The Role of Air (Overrun)

There’s a secret ingredient in ice cream people often aren’t aware of — air. It’s what separates good ice cream from incredible ice cream, so getting it right is important. So, how does a soft serve machine work to get air into the final product?

During the freezing process, the spinning dashes not only scrape the ice cream into folds, but also fold air into the mix. This added air is known as overrun, and it stops the product from freezing into a dense, icy block. Soft serve machines are designed to introduce more air, creating a lighter, creamier result. Gelato and batch freezers add far less air, which produces a denser texture with a firm bite.

Getting the Mix In: Gravity vs. Pump Feed

To keep ice cream flowing, the liquid mix needs to move steadily from the hopper into the freezing cylinder. There are two ways this can happen:

  • Gravity feed systems rely on natural gravity and internal valves to let the mix drop into the freezing chamber as product is dispensed, making them simple, mechanical and easy to maintain.
  • Pump feed systems work differently, using a motorised pump to push the mix into the cylinder under pressure, allowing better control of flow rate and air intake. This added control is often used in higher output machines where consistency and texture precision are more important.

Keeping the Engine Cool: Air vs. Water Cooled

Needless to say, heat is the worst enemy of ice cream. There are two different engine cooling systems to consider:

  • Air-cooled, where fans push out hot air through vents, requiring air around the machine for ventilation.
  • Water-cooled, using running water to remove heat internally, resulting in a quieter operation and no hot air getting released into the room.

The Dispensing Mechanism

Now you know how an ice cream machine works, it’s time for the dispensing to begin. Pulling the soft serve machine mechanism opens the front door of the freezing cylinder, allowing the ice cream to flow while the system stays in control. The dasher continues rotating to push the ice cream through the nozzle. At the same time, a fresh liquid mix is automatically drawn in and frozen, keeping the machine ready for the next serve.

Explore Ice Cream Machines at AGC Equipment

Know which features you’re looking for now? Explore our range of high-quality ice-cream machines, including compact benchtop units and high-capacity floor models for every restaurant or business.
